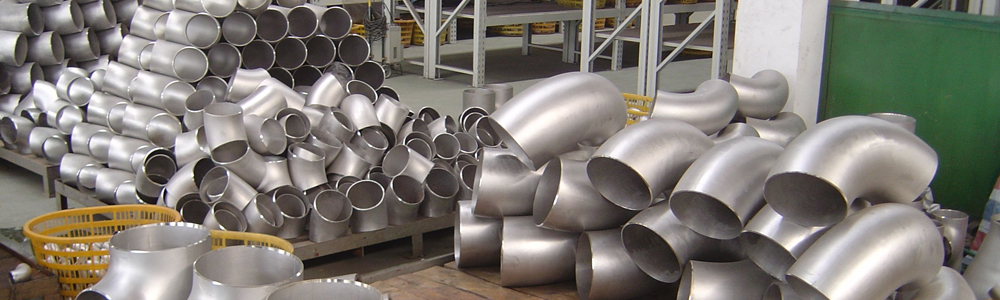

Veer Impex is a steel manufacturing and supplying corporation which is the leading producer of Inconel 800/800h/800HT Buttweld fittings. We aim to provide high products that are made only from the highest-quality raw materials and available materials to attain our clients' demands. These products are also designed according to international quality of standards and are available in customization.
Inconel 800, 800H, and 800HT are the most well-known nickel-chromium alloys with a chemical composition of nickel of not more than 35%. The chromium ranges from 19-24%, 0.10%, or less carbon, and a lesser amount of other elements. They also have many different forms in which they are available such as sheets, plates, tubes, pipe & tubes, and others. Inconel 800H and 800HT belong to 800 alloy and high-temperature strength, high creep and stress rupture properties, and most importantly, resistance to carburization and oxidation environments. Due to high nickel content on all grades, they are considered resistant to chloride ions and acidic environments. Inconel 800h/800HT are dual certified and combine properties of both forms.
Due to the wide range of characteristics of Inconel 800/800h/800HT Butt Weld Fitting and usage in several applications in industries such as petrochemical industries, chemical industries, oil and gas industries, pharmaceutical equipment, paper, and pulp industries, and so on. We have a large selection of Inconel 800/800h/800HT Butt weld fittings in various sizes, shapes, and thicknesses, as well as ample stock.
Inconel 800/800h/800H Buttweld fitting is highly demanded in sectors such as petrochemicals, chemical industries, oil and gas industries, pharmaceutical equipment, paper, and pulp industries, and so on due to its wide range of characteristics and uses.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Specification : | ASTM B366 / ASME SB366 |
Dimension Standard : | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
Size : | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
Thickness : | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
Bending Radius : | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
Type : | Seamless / Welded / Fabricated |
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
The full identification of the pipe fittings should be continuously marked down its whole length, including :
Incoloy 800 & 800h & 800ht pipe fittings catalogue, Incoloy 800 & 800h & 800ht seamless pipe fittings, alloy 800 short radius elbow supplier, alloy 800 buttweld fittings price list, alloy 800 buttweld fittings manufacturer in mumbai, astm b366 800 two joint fittings, incoloy alloy 800 butt weld fittings, Incoloy 800 & 800h & 800ht pipe nipple supplier, Incoloy 800 & 800h & 800ht pipe fittings manufacturer, Incoloy 800 & 800h & 800ht two halve fittings supplier, incoloy alloy 800 pipe fittings suppliers, Incoloy 800 & 800h & 800ht pipe fittings manufacturers in india, asme sb366 800 incoloy pipe fittings,incoloy alloy 800 reducing elobw supplier, Incoloy 800 & 800h & 800ht long radius elbow, alloy 800 buttweld elbow supplier in mumbai, price of incoloy buttweld fittings 800, Incoloy 800 & 800h & 800ht piggable bend supplier, incoloy® alloy 800 5d elbow, incoloy 45 degree elbow, Incoloy 800 & 800h & 800ht seamless buttweld elbow price list in india, alloy 800 butt weld fittings supplier in india, Incoloy 800 & 800h & 800ht pipe fittings suppliers in chennai, Incoloy 800 & 800h & 800ht 90 deg buttweld elbow supplier, incoloy® 800 long radius bend, alloy 800 buttweld fittings price list, Incoloy 800 & 800h & 800ht butt weld fittings supplier in india, alloy 800 pipe fittings manufacturer in mumbai, Incoloy 800 & 800h & 800ht pipe fittings manufacturers in india, incoloy 3d elbow grade 800 price list, 800 incoloy pipe fittings price list, incoloy alloy 800 pipe fittings, Incoloy 800 & 800h & 800ht pipe elbow price, Incoloy 800 & 800h & 800ht pipe elbow supplier, Incoloy 800 & 800h & 800ht eual cross, Incoloy 800 & 800h & 800ht pipe reducer price.
Seamless / Welded Pipe Fittings With Mill And Third Party Test Certificate.
Incoloy 800 & 800h & 800ht Pipe Fittings Price List
Request the latest Incoloy 800 & 800h & 800ht Buttweld Fittings Price List. Please Call +91 9167014755 / +91 9082006249 or Send an Email to [email protected] for Incoloy UNS N08800, 1.4876 Pipe Fittings Ready stock information and updated price list.
